Valve testing equipment

TEMES valve.teq

In order to be able to verify and further optimize the tightness and function of the stem seals and housing cover seals of valves, we have developed the valve test stand TEMESvalve.teq.

Standards: ISO 15848, VDI 2440, API 624

Testing can be carried out according to standards like EN ISO 15848-1, VDI 2240 or API 624 or according to individually defined test procedures.

Friction forces during stem actuation are quantified as well as leakage rates for different sealing materials and assembly conditions.

Layout of the test rig

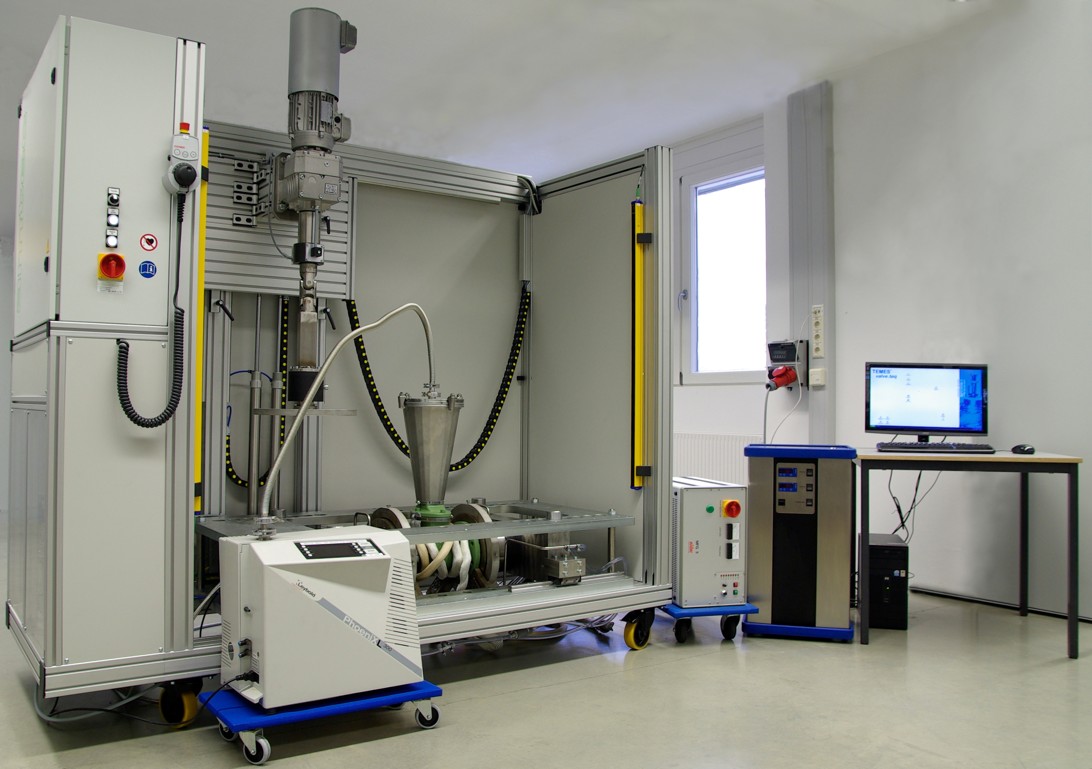

The test rig TEMESvalve.teq consitsts of the mechanical assembly (base frame with clamping device), an electric stem drive mechanism, a heating and cooling device, a control cabinet, a leakage device, a PC and monitor. A leak detector is available as optional accessory.

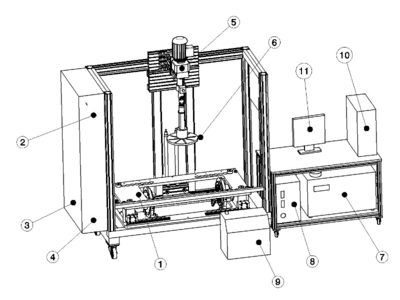

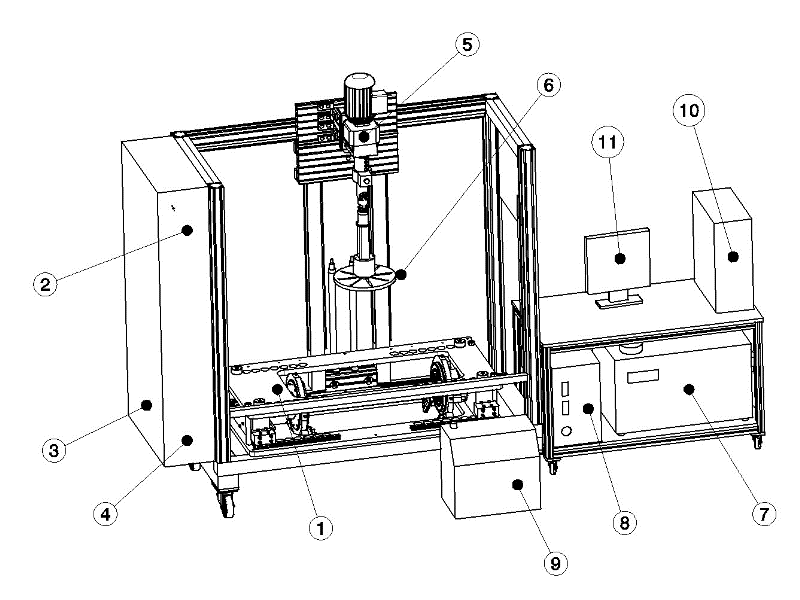

  1. clamping device
  2. control cabinet
  3. hydraulic pump
  4. leakage device
  5. stem drive mechanism
  6. clutch
  7. cooling device
  8. heating device
  9. leak detector
  10. PC
  11. monitor screen

The heating device is suitable for temperatures up to 400 °C (750 °F). Leakage tests can be performed with pressures up to 200 bar (2,900 psi) within the full temperature range.

TEMESvalve.teq is suitable for different leakage measurement methods. Differential pressure decay, a Helium leak detector or a flame ionization detector (FID) are different options to meet your requirements. The test rig is prepared for the measurement of leak rates with different test media, like Nitrogen, Helium and Methane.

Computer based data logging enables a complete recording of all relevant variables. Individual online diagrams and alphanumerical indicators are available for online monitoring of the test procedures. Data storage is compatible with MS Excel for customer-specific or application-specific reporting.

The software that is delivered with the test rig additionally facilitates automated test procedures and single steps thereof. Measured data including switch settings of the control unit is continually checked for validity and failure criteria while displayed on the monitor screen. An alarm signal or automatic switching operation is triggered if necessary in order to prevent imminent danger or damages to the test rig.

Test procedures can be performed manually or automated with a PC interface. Predefined test procedures are available that can be modified or upgraded individually.

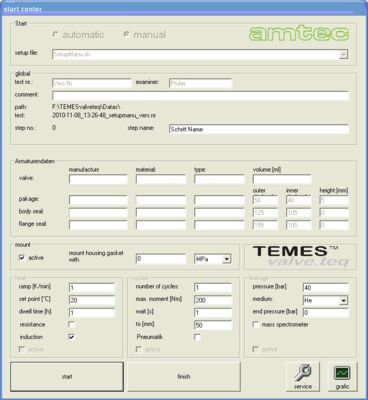

Start center of the TEMES valve.teq software


valve dimensions: DN150/PN250 or DN250/PN25
temperature: 400 °C (750 F)
pressure: 200 bar (2900 psi)
test medium: e.g. He, N2, CH4
clamping force: 1300 kN (290,000 lbs)
stem drive: 120 Nm (90 lb-ft)
  • EN ISO 15848-1
  • VDI 2440
  • API 624
  • individuelle Prüfabläufe


We are prepared to test the tightness of your valves in our test laboratory or to demonstrate the functionalty of the test rig if you want to purchase TEMESvalve.teq for your own facilities.
